ELB Minimum Number Of EC2 Instances

01 Login to the AWS Management Console.

02 Navigate to the EC2 dashboard at https://console.aws.amazon.com/ec2/.

03 In the navigation panel, under LOAD BALANCING, click Load Balancers.

04 Select the Elastic Load Balancer that you want to examine.

05Select the Instances tab from the bottom panel.

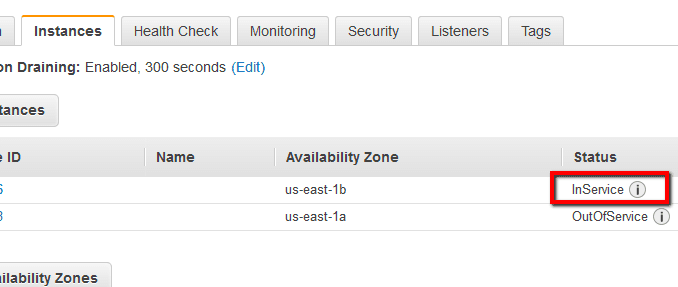

06 In the instances table, search for any healthy instance with the current status set to InService:

If the number of healthy instances assigned to the selected ELB is less than two, the ELB does not have a fault-tolerant configuration.

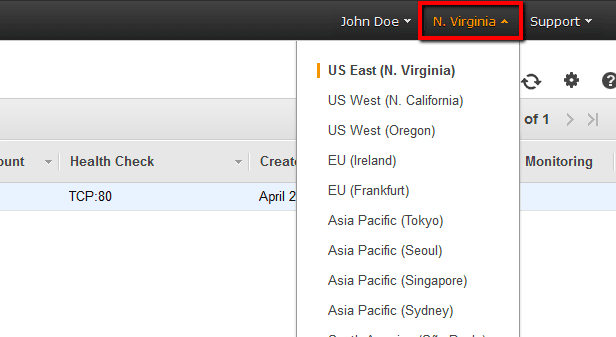

07 Repeat steps 4 – 6 for each load balancer available in the current AWS region. Change the AWS region from the navigation bar to repeat the process for the other regions:

01 Run describe-instance-health command (OSX/Linux/UNIX) to determine the number and the health status of the EC2 instances registered with the selected ELB:

aws elb describe-instance-health
	--region us-east-1
	--load-balancer-name MyWebELB

01 The command output should reveal the current health status for each backend instance. If the State parameter value is set to InService the instance is healthy, otherwise the instance is unhealthy:

{
    "InstanceStates": [
        {
            "InstanceId": "i-c4d66559",
            "ReasonCode": "N/A",
            "State": "InService",
            "Description": "N/A"
        },
        {
            "InstanceId": "i-4e47f7d3",
            "ReasonCode": "Instance",
            "State": "OutOfService",
            "Description": "Instance has not passed the configured
             HealthyThreshold number of health checks consecutively."
        }
    ]
}

01 Login to the AWS Management Console.

01 Navigate to the EC2 dashboard at https://console.aws.amazon.com/ec2/.

01 If your ELB is associated with an Auto Scaling Group (ASG), you need to update the ASG configuration first to increase the number of backend instances:

1. In the navigation panel, under AUTO SCALING, click Auto Scaling Groups.
2. Select the Auto Scaling Group that integrates the ELB.

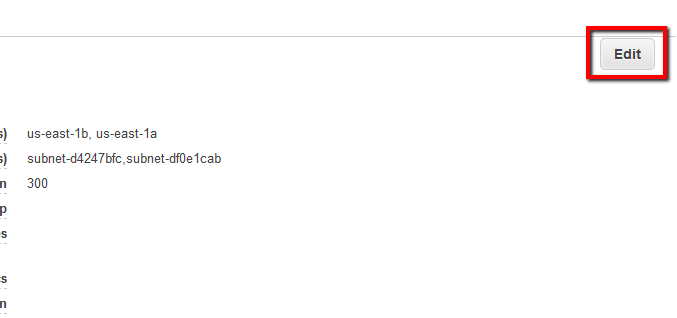

3. Select the Details tab from the bottom panel and click the Edit button from the right side:
4. Change the values available in the Desired, Min and Max fields to reflect the number of instances that will be registered with the ELB (in this case, the value must be at least 2 for each field).
5. Click Save to apply the changes.

01 In the navigation panel, under LOAD BALANCING, click Load Balancers.

01 Select the Elastic Load Balancer that you want to examine.

01 Select the Instances tab from the bottom panel and click the Edit Instances button.

01 In the Add and Remove Instances dialog box, perform the following:

1. To remove any unhealthy instance registered with the ELB, deselect the instance entry.
2. To register a new EC2 instance available in the list, select the instance entry.

01 Once you have selected at least two healthy EC2 instances, review the changes and click Save.

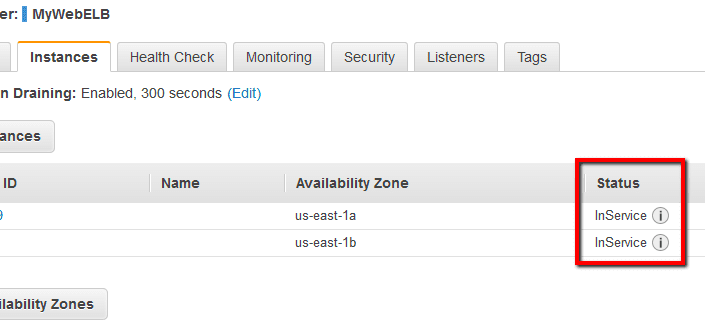

01 Make sure the new instance(s) registered with the ELB respond successfully to the health checks by changing their status from OutOfService to InService (the registration process may take a few minutes depending on the ELB health check configuration):

01 Repeat steps 3 – 9 for each ELB / ASG available in the current AWS region. Change the AWS region from the navigation bar to repeat the process for the other regions:

01 Run update-auto-scaling-group command (OSX/Linux/UNIX) to update the selected Auto Scaling Group (ASG) launch configuration, in order to increase the number of backend instances (the command does not return any output):

aws autoscaling update-auto-scaling-group
	--region us-east-1
	--auto-scaling-group-name MyWebASG
	--launch-configuration-name MyASGLaunchConfig
	--min-size 2
	--max-size 2
	--desired-capacity 2

02 Run register-instances-with-load-balancer command (OSX/Linux/UNIX) to register new EC2 instances with the selected ELB. The following example registers a new instance with the ID i-c95cef54 (in this case the instance is created automatically by ASG):

aws elb register-instances-with-load-balancer
	--region us-east-1
	--load-balancer-name MyWebELB
	--instances i-c95cef54

The command output should return each instance metadata registered with the selected ELB:

{
    "Instances": [
        {
            "InstanceId": "i-c95cef54"
        },

        {
            "InstanceId": "i-ef78ce68"
        }
    ]
}

03 Run describe-instance-health command (OSX/Linux/UNIX) to determine the health status of the new EC2 instances registered with the selected ELB:

aws elb describe-instance-health
	--load-balancer-name MyWebELB

04 The command output should reveal the current health status for each ELB backend instance. If the State parameter value is set to InService the instance is healthy, otherwise the instance is unhealthy (the registration process may take few minutes depending on the ELB health check configuration):

{
    "InstanceStates": [
        {
            "InstanceId": "i-c95cef54",
            "ReasonCode": "Instance",
            "State": "InService",
            "Description": "N/A"
        },
	      ...
        {
            "InstanceId": "i-ef78ce68",
            "ReasonCode": "N/A",
            "State": "InService",
            "Description": "N/A"
        }
    ]
}
